195W 12V Monocrystalline Solar Panel


$215.99 $254.11

ECO-WORTHY this 195W 12V Monocrystalline Solar Panel is primarily used on off-grid situations that include RV, boat, sailboat, yacht, truck, cabin, camper, tent, trailer, golf cart. 1000WH per day, can fully charge a 50AH Battery from 50% in 1.5 hours (depending on the availability of sunlight). Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades. Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance. IP67 rated junction box provides complete protection against environmental particles and low pressure water jets. Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Ideal with large rail mounts for extra support and security.

Package Includes
1x 195W 12V Monocrystalline Solar Panel

195W Monocrystalline Solar Panel
High Efficient Monocrystalline
Rated Power: 195W
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (Isc): 10.83A
Working Current (Iop): 9.02A
Output Tolerance: ±3%
Temperature Range: -40℃ to +80℃
Size: 58.3*26.3*1.4 inch (1480*668*35 mm)
Weight: 29.2 lbs (13.2kg)

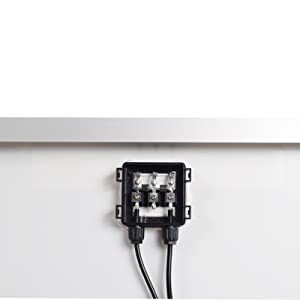

Junction Box
IP Rating: IP65
Number of Diodes: 2 Diodes
Output Cables: 12AWG(2.79 feet long)

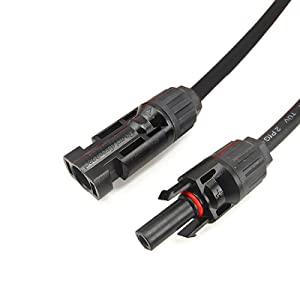

Connectors
Rated Current: 30A
Maximum Voltage: 1000V DC
Maximum AWG Size Range: 10AWG
IP Rating: IP67

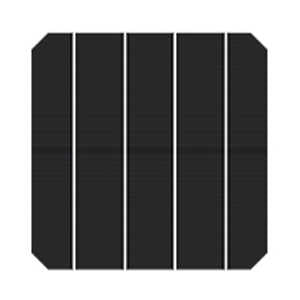

Solar Cells
The solar panel was made of A grade solar cells with hight efficiency, works better in sunshine with more efficiency.

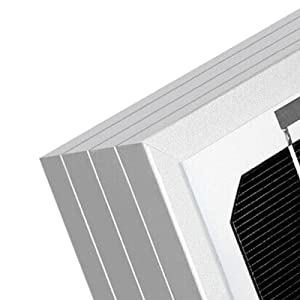

Duarable Aluminum Frame
Resistant to extreme weather, can withstand high wind (2400Pa) and snow loads (5400Pa).


Warranty Information

Panels 5-year/95% efficiency rate,
10-year/90% efficiency rate,
25-year/80% efficiency rate,
2-year limited material and workmanship warranty
