100W 200W 12V (1/2x100W) Complete Off Grid Solar Kit with 600W Inverter + Lithium


$165.99$689.99

Compare

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 100W 200W 12V expandable Solar Kit is an ideal choice. This system could generate approximately 0.4kWh 0.8kWh per day.
ECO-WORTHY 100 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
600W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 100W 200W 12V Solar Kit can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy. If you have any questions regarding this product, please contact us info@eco-worthy.com.

Package Includes

100W (1-Panel) 12V Solar Kit
100W Solar Panel/0.36kWh LiFePO4 Battery/600W Pure Sine Wave Inverter
Daily Production Estimate:400WH

1x 100W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Z Mounting Bracket
Inverter & Battery Options-
Complete Lithium Kit (optional)
with
1x 1.5M Tray Cable
1x 600W 12V-110V Pure Sine Wave Inverter
1x 20Ah 12V LiFePO4 Lithium Battery

200W (2-Panel) 12V Solar Kit
200W Solar Panel/0.72kWh LiFePO4 Bank/600W Pure Sine Wave Inverter
Daily Production Estimate:800WH

2x 100W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
2x Z Mounting Bracket
1x Y MC4 Connector
Inverter & Battery Options-

Complete Lithium Kit (optional)
with
1x 1.5M Tray Cable
1x 600W 12V-110V Pure Sine Wave Inverter
2x 20Ah 12V LiFePO4 Lithium Battery
2x 6AWG Battery Interconnect Cable

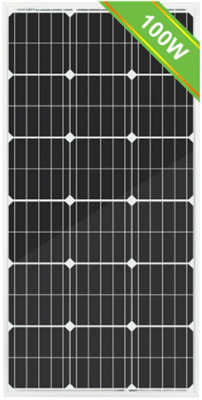

100W Monocrystalline Solar Panel
High Efficient Monocrystalline
Rated Power: 100W
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (Isc): 6.13A
Working Current (Iop): 5.78A
Output Tolerance: Âħ3%
Temperature Range: -40℃ to +80℃
Size: 1010*510*35mm (39.8*20.1*1.4inch)
Weight: 8.6kg



30A PWM Solar Charge Controller
Maximum charging current: 30A
Maximum loading current: 30A
Rated voltage: 12/24V
Floating charge voltage: 13.8V/27.6V
Cut-off voltage of discharge: 10.5V/21V
Discharge recovery voltage: 12.5V/25V
Standby current: <10mA



600W 12V Off Grid Inverter
Continuous Power: 600W
Output Volt: 110V AC
Waveform Pure Sine Wave
Surge Power: 1200W
Frequency: 110V-60Hz
Input Range: 10-15V DC
Working Input: 12V DC



20Ah LiFePO4 Lithium Battery
Battery Capacity: 20AH
Battery Voltage: 12V
Max Charge Voltage: 14.5V
Discharge Cut-Off Voltage: 10V
Continuous Charge/Discharge Current: 20A
Peak Charge/Discharge Current: 20A
Size: 7.1*3*6.3inch
Weight: 4.85lbs

Why LiFePO4 Lithium Battery
Longer Life Span
Up to 80% capacity for 3000 cycles in recommended conditions. The typical SLA has 300-400 cycles. ECO-WORTHY Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Lightweight Champion
Our lithium battery is only 1/3 of the weight of a lead-acid battery, easy to move and install. It is an ideal choice for outdoor camping power supply and simple indoor installation.
High Efficiency
It provides up to 95% of their rated capacity while a lead-acid battery is usually limited to 50%. You get all the juice down to the last drop. It can support fast charging or solar panel charging.
Extremely Safe
LiFePO4 batteries are safest battery type available today. ECO-WORTHY lithium battery has a built-in Battery Management System(BMS), we can guarantee the safety and reliability of our batteries.

16.4 feet 12AWG Cables
16.4 feet red and black cable with connector.
For extending the cables of panel and connecting to controller.
Z Mounting Bracket
4 pieces of Z shape solar panel brackets.
8 pieces of stainless steel nuts and cap bolts.
Y Branch Cable MC4 Connectors
Compatible with MC4 solar connector.
Easy installation for 2 solar panels connected in parallel.


Warranty Information

Panels 5-year/95% efficiency rate,
10-year/90% efficiency rate,
25-year/80% efficiency rate,
2-year limited material and workmanship warranty
Accessories 1-year material warranty
